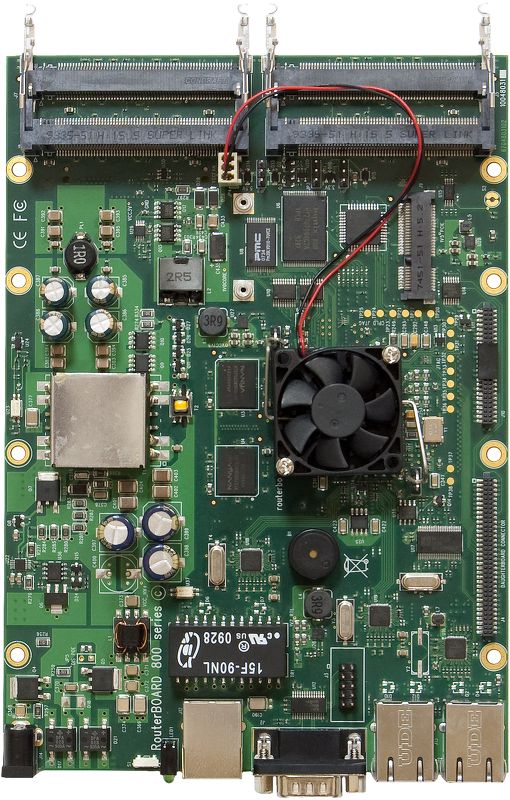

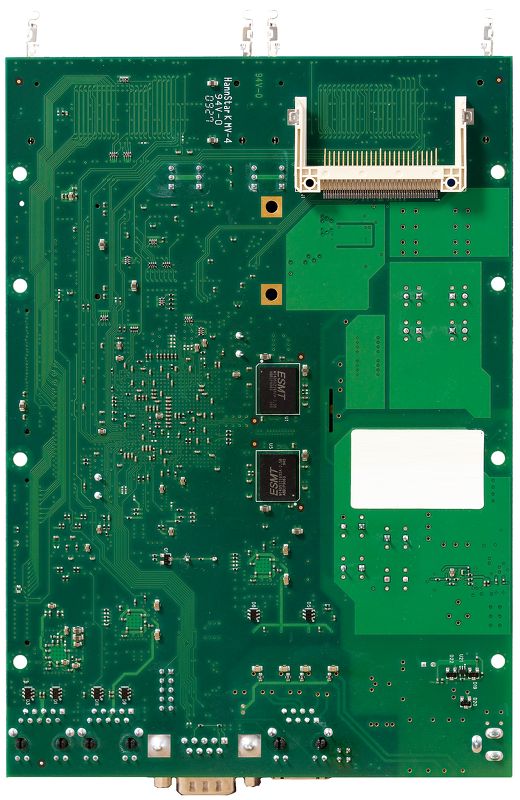

The RB800 is an advanced high performance wireless platform. It has four miniPCI slots, three Gigabit ethernet ports, two daughterboard connectors (one PCI and one PCI-e), a miniPCI-e slot and a compact flash slot.
The two daughterboard connectors allow you to expand the number of wired and wireless ports, and the new high power CPU is capable of supporting them all.

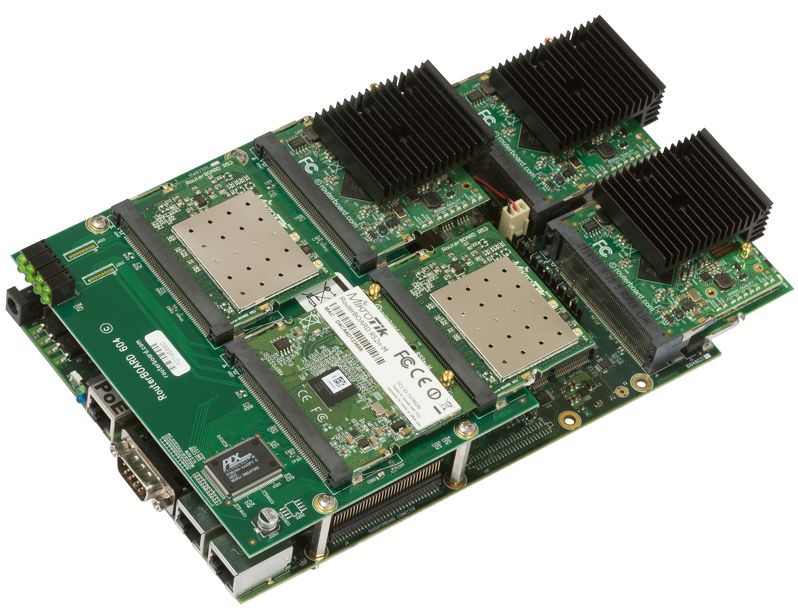

RB800 has daughterboard connector, so you have a lot of expansion possibilities. You can buy RB502 to add two miniPCI slots, RB604 to add four miniPCI slots or RB816 to add 16 Ethernet ports!
This is the new definition of wireless networking power. Combined with RouterOS - RB800 is the most powerful and sophisticated wireless router, firewall and bandwidth manager.
- Brand: MikroTik
|CPU nominal frequency||800 MHz|
|CPU core count||1|
|Size of RAM||256 MB|
|10/100 Ethernet ports||0|
|10/100/1000 Ethernet ports||3|
|Wireless chip model||None|
|Number of USB ports||0|
|Memory card type||CF|
|Power Jack||10-56V DC|
|PCB temperature monitor||No|
|CPU temperature monitor||Yes|
|Temperature range||-75℃ to +65℃|
|License level||Level 6|
