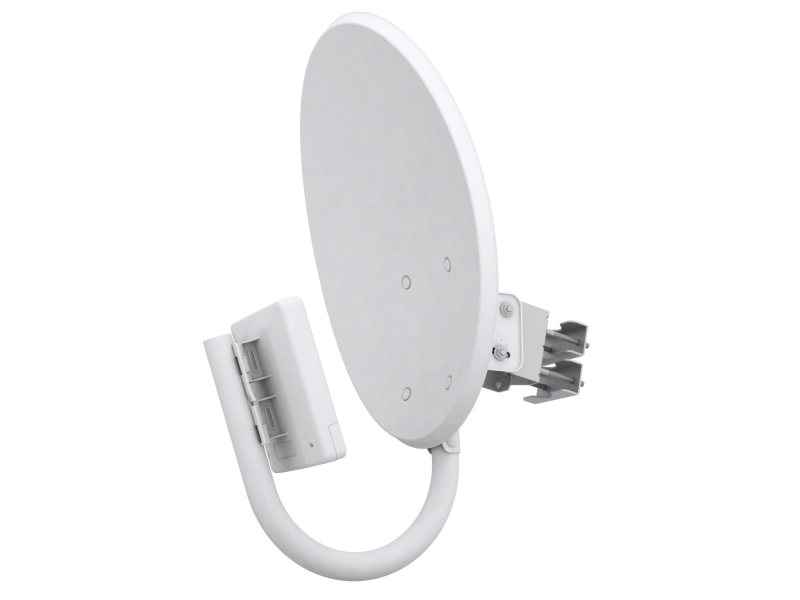

Nano Bridge M9
900 MHz MIMO Bridging Solution
Provides breakthrough MIMO antenna cost/performance. Higher Antenna Gain and even more cost-effective.
Compact and Robust Product Design
Very small visible footpint. Mechanical design provides complete weatherproof performance. Acitivity and signal strength LED`s provided for installers. Enhanced RF and Ethernet ESD/Surge protection enables prolonged operation in harshest environments.
Breakthrough Wireless Performance, AirMax and AirControl Support
150+Mbps of real outdoor throughput and up to 20km+ range. NanoBridge M products utilize Ubiquiti`s revolutionary AirMax™ TDMA protocol enabling scalable, carrier-class PtMP network performance. Additionally, AirControl™ application allows operators to centrally manage 100`s of devices.
- Brand:
Ubiquiti
-
Code: NBM9
Available
System Information | |
Processor Specs: | Atheros MIPS 24KC, 400MHz |
Memory Information: | 64MB SDRAM, 8MB Flash |
Networking Interface: | 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet |
Regulatory / Compliance Information | |
Wireless Approvals: | FCC Part 15.247, IC RS210 |
RoHS Compliance: | Yes |
Physical / Electrical / Environmental | |
Enclosure Characteristics: | Outdoor UV Stabilized Plastic |
Mounting Kit: | Pole Mounting Kit included |
Power Supply: | 24V, 1A POE Supply included |
Power Method: | Passive Power over Ethernet (pairs 4, 5+; 7, 8 return) |
Operating Temperature: | -30C to 75C |
Operating Humidity: | 5 to 95% Condensing |
Shock and Vibration: | ETSI300-019-1.4 |
Dimensions: | 543 x 440 x 725 mm |
Weight: | 1310g |
Max Power Consumption: | 6.5 Watts |
Antenna Gain: | 10.6 - 11.3 dBi |
