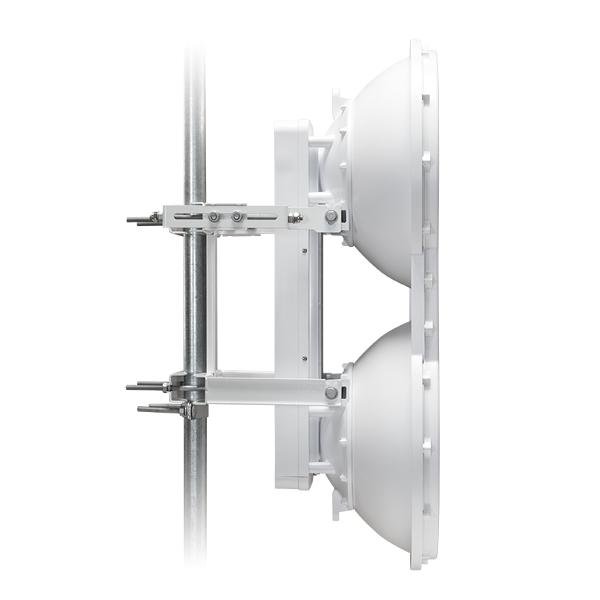

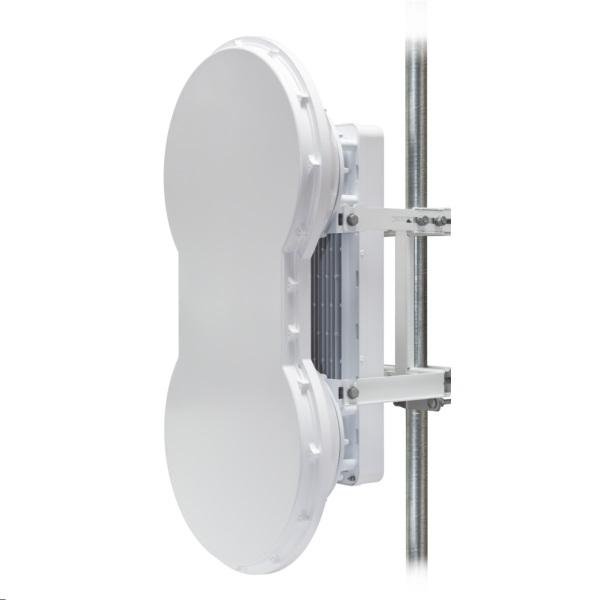

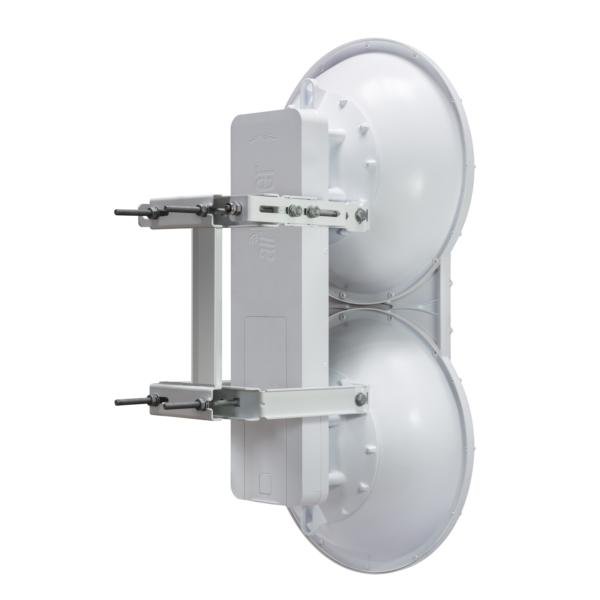

airFiber 5
airFiber delivers gigabit performance at 1.0+ Gbps for airFiber AF5/AF5U. To put this in perspective, airFiber can transmit a 100 MB file in less than a second. Rivaling common broadband providers, airFiber download speed is up to 100x faster. With speed and throughput surpassing conventional wired backhauls, airFiber prevails over expensive and labor-intensive wired infrastructures airFiber is built for long-range use - up to 100+ km for airFiber AF5/AF5U, which launches the innovative xtreme Range Technology (xRTTM) feature.
- Brand:
Ubiquiti
-
Code: airFiber-5
Available
| Operating Frequency | |
| AF5 | |
| FCC 15.247, 15.407, IC RSS 210 | 5470 - 5600 MHz, 5650 - 5850 MHz |
| ETSI EN 301 893, EN 302 502 | 5470 - 5875 MHz |
| Other Regions | 5470 - 5950 MHz |
| AF5U | |
| FCC 15.247, IC RSS 21 | 5725 - 5850 MHz |
| ETSI EN 302 502 | 5725 - 5875 MHz |
| Other Regions | 5725 - 6200 MHz |
| Dimensions | 938.4 x 468.4 x 281.4 mm |
| Weight | 16 kg (Mount included) |
| Max. Power Consumption | 40W |
| Power Supply | 50V, 1.2A PoE GigE Adapter (Included) |
| Power Method | Passive Power over Ethernet (42-58VDC) |
| Certifications | CE, FCC, IC |
| Mounting | Pole Mount Kit (Included) |
| Wind Loading | 194 lbf @ 125 mph |
| Wind Survivability | 125 mph |
| Operating Temperature | -40 to 55°C |
| LEDs | Status LEDs: |
| Interfaces | |
| Data Port | 10/100/1000 Ethernet Port |
| Management Port | 10/100 Ethernet Port |
| Auxiliary Port | RJ-12, Alignment Tone Port |
| System | |
| Maximum Throughput | 1.0+ Gbps |
| Maximum Range | 100+ km (Dependent on Regulatory Region) |
| Packets per Second | 1+ Million |
| Encryption | 128-Bit AES |
| Forward Error Correction | 164/205 |
| Cyclic Prefix | 1/16 Fixed |
| Uplink/Downlink Ratio | 50% Fixed |
| Radio Frame Synchronization | GPS |
| Dynamic Frequency Selection | |
| AF5 | CE, FCC/IC |
| AF5U | CE, (FCC/IC Not Applicable) |
