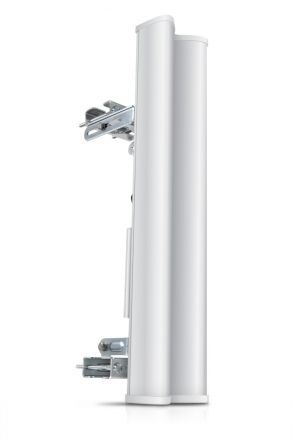

airMAX BaseStation Sector - 2.4GHz 15dBi 120
World Class Antenna Designs Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included. Rocket M Seamlessly Integrates with AirMax BaseStation Sectors Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.
- Brand:
Ubiquiti
-
Code: AM-2G15-120
Available
| Frequency range | 2,3MHz - 2,7MHz |
| Gain | 15.0 - 16.0 dBi |
| Polarization | Dual Linear |
| Cross-pol Isolation | 28dB min |
| Max VSWR | 1.5:1 |
| Hpol Beamwidth (6dB) | 123 deg. |
| Vpol beamwidth (6dB) | 118 deg. |
| Elevation Beamwidth | 9 deg. |
| Electrical Downtilt | 4 deg. |
| ETSI Specification | EN 302 326 DN2 |
| Dimensions | 367mm x 63mm x41mm |
| Weight | 4 kg |
| Windloading | 120mph |
