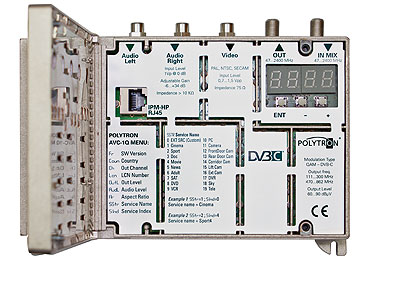

AVC 1Q
This modulator converts stereo AV signals into the frequency range from 111–300 MHz and 470-862 MHz.
- Brand:
Polytron
-
Code: AVC 1Q
Available
| Technical data | |
| Type | AVC 1Q |
| Article no. | 5741632 |
| Input | |
| Connectors | 3x RCA (Cinch) |
| Video input | PAL / NTSC / SECAM |
| Video level | 0,7–1,5 Vpp |
| Audio level | 0,1–4 Vpp |
| RF output | |
| Modulation | QAM |
| Output level | 90 dBВµV |
| Level adjustment | 0–30 dB (1 dB Schritte / steps) |
| Frequency range | 111–300 MHz, 470–862 MHz |
| Channel bandwidth | 7 / 8 MHz |
| Frequency range RF combiner | 47–2400 MHz |
| Modulation | 16QAM, 32QAM, 64QAM, 128QAM, 256QAM |
| Symbol rate | 1000–7000 MS/s |
| MER | > 32 dB |
| Power consumption | 230 V~ (50 Hz) 9 W |
| Temperature range | -10 °C – 55 °C |
