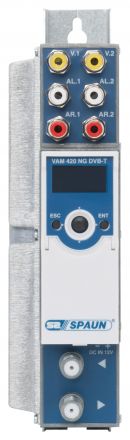

VAM 420 NG DVB-T

Video Audio-Modulator in DVB-T

  • Brand:
  • Code: VAM 420 NG DVB-T
Price
Price: €682.00
Quantity:

Available

Send to friend Rate this product Add to wishlist Compare
Model Art. No.VAM 420 NG DVB-T *** 821708
EAN4040326217085
Video-/Audio-Inputs2 / 2
Frequency range110 ... 862 MHz
TV standardPAL (B/D/G/H/I/M/N/60); SECAM; NTSC (M, 4.43)
Input impedance75 Q BNC female
Outputlevel85 dBgV + 2dB
Output level adjusting range0 ... 15,5 dB (in 0,5 dB steps)
C/N ratio> 50 dB
Output impedance75 a
Return loss> 10 dB
Connector type RFF
Connector type audio, videoRCA
Input level1+ 0,1 Vp-p
Input impedanceRCA 75 Q
EncodingISO /IEC11172-3 (MPEG1 audio) layer 2 compliant
Sample Rate44,1 kHz
Compressed bit rate256 Kbps
Audio ModeStereo
EncodingISO/IEC13818-2 MPEG-2 MP@ML
Resolution720 x 576 (at 25 fps), 720 x 480 (at 30 fps)
Frame rate25 max. PAL, SECAM, 30 max. NTSC
Compressed system bit rate2...9 Mbps
MER> 35 dB
ModulationQPSK, QAM 16, QAM 64
Channel Bandwidth7/8 MHz
GUARD Interval1/4, 1/8, 1/16, 1/32
Supply voltage12V + 1V
Current consumption650 mA
Ambient temperature0 ... +50 В°C
Dimensions (mm)196 x 106 x 48
