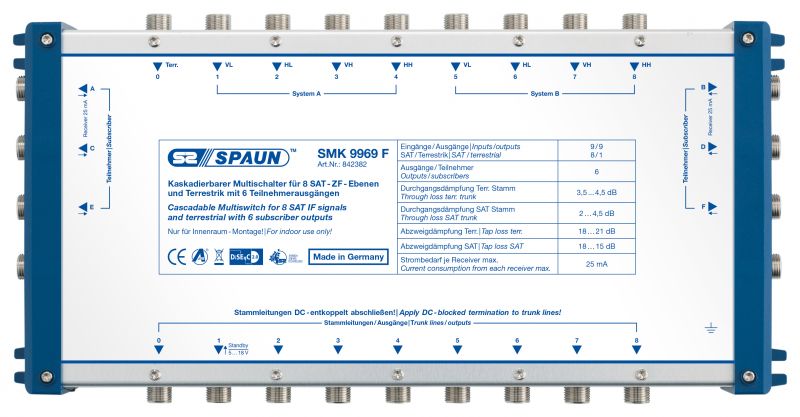

SMK 9969 F
Cascadable multiswitch 8 SAT IF signals 6 subscribers
- Brand:
SPAUN
-
Code: SMK 9969 F
Available
| Model Art. No. | SMK 9969 F 842382 | SMK 9989 F 842383 | SMK 99129 F 842409 | SMK 99169 F 842410 |
| EAN | 4040326423820 | 4040326423837 | 4040326424094 | 4040326424100 |
| Inputs / outputs SAT / terr. | 9 / 9 8 / 1 | |||
| Outputs / subscribers | 6 | 8 | 12 | 16 |
| Through loss terr. trunk | 3,5 ... 4,5 dB | 3,5 ... 4,5 dB | 3,5 ... 5 dB | 3,5 ... 5 dB |
| Through loss SAT trunk | 2 ... 4,5 dB | 2 ... 4,5 dB | 4 ... 8 dB | 4 ... 8 dB |
| Tap loss terr. | 18 ... 21 dB | 18 ... 21 dB | 22 ... 24 dB | 22 ... 25 dB |
| Tap loss SAT | 18 ... 15 dB | 18 ... 15 dB | 20 ... 16 dB | 20 ... 16 dB |
| Current consumption from receiver max. | 25 mA | |||
| Isolation trunk / trunk | > 30 dB | > 30 dB | > 30 dB | > 30 dB |
| Isolation receiver / receiver | > 30 dB | > 30 dB | > 30 dB | > 30 dB |
| DC-pass through Trunkline 0; 2 ... 8 * | 1 A | |||
| Ambient temperature | -20 ... +50 В°C | |||
| Dimensions (mm) | 265 x 130 x 40 | 265 x 130 x 40 | 265 x 211 x 40 | 265 x 211 x 40 |
