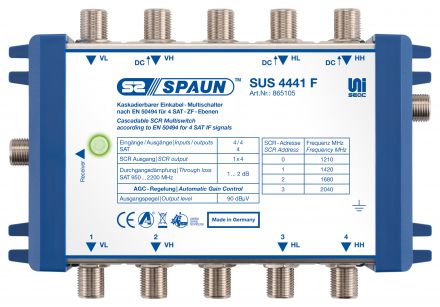

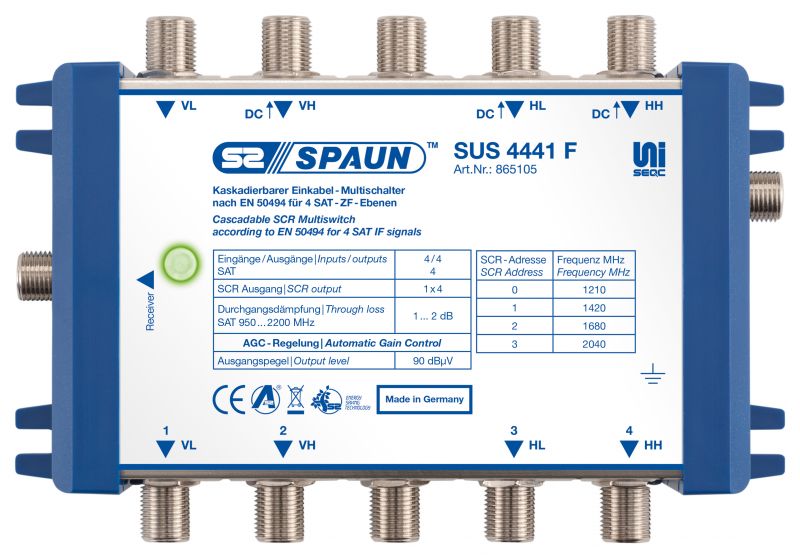

SUS 4441 F
Receiver powered SCR multiswitch for the distribution of 4 SAT IF positions through one output onto four receivers, Automatic gain control, according to EN 50494
- Brand:
SPAUN
-
Code: SUS 4441 F
Available
| Model Art. No. | SUS 5541 F 865100 | SUS 5541 NFA 865102 | SUS 5581 F 865101 | SUS 5581 NFA 865103 | SUS 4441 F 865105 | SUS 4481 F 865106 |
| EAN | 4040326651001 | 4040326651025 | 4040326651018 | 4040326651032 | 4040326651056 | 4040326651063 |
| Inputs SAT / terrestrial | 5 / 5 4 / 1 | 5 / 5 4 / 1 | 5 / 5 4 / 1 | 5 / 5 4 / 1 | 4 / 4 4 / - | 4 / 4 4 / - |
| Through loss Terr. 5 ... 862 MHz | < 4 dB | < 4 dB | < 4 dB | < 4 dB | - | - |
| Through loss SAT 950 ... 2200 MHz | 1 ... 2 dB | - | 1 ... 2 dB | - | 1 ... 2 dB | 1 ... 2 dB |
| Through gain SAT 950 ... 2200 MHz | - | 12 ... 14 dB | - | 12 ... 14 dB | - | - |
| Tap loss Terr. 5 ... 862 MHz | 4 ... 6 dB | 4 ... 6 dB | 4 ... 6 dB | 4 ... 6 dB | - | - |
| Isolation | i > 35 dB | |||||
| Automatic Gain Control | | ||||||
| SAT input level | 65 ... 95 dB^iV | 50 ... 80 dB^iV | 65 ... 95 dB^iV | 50 ... 80 dB^iV | 65 ... 95 dB^iV | 65 ... 95 dB^iV |
| Output level SAT 950 ... 2200 MHz „Full-band“ assignment | 95 dB^iV | 95 dB^iV | 95 dB^iV | 95 dB^iV | 95 dB^iV | 95 dB^iV |
| Mains supply V~ | Optional SNG 18/1000 100 ... 240 V / 47 - 63 Hz | Includes SNG 18/1000 100 ... 240 V / 47 - 63 Hz | Optional SNG 18/1000 100 ... 240 V / 47 - 63 Hz | Includes SNG 18/1000 100 ... 240 V / 47 - 63 Hz | Optional SNG 18/1000 100 ... 240 V / 47 - 63 Hz | Optional SNG 18/1000 100 ... 240 V / 47 - 63 Hz |
| Power consumption | - | < 7 W | - | < 7 W | - | - |
| LNB remote current | - | 300 mA | - | 300 mA | - | - |
| Current consumption for each receiver | < 230 mA | < 40 mA | < 320 mA | < 40 mA | < 230 mA | < 320 mA |
| Ambient temperature | -20 ... +50 В°C | -20 ... +50 В°C | -20 ... +50 В°C | -20 ... +50 В°C | -20 ... +50 В°C | -20 ... +50 В°C |
| Dimensions (mm) | 140 x 92 x 38 | 140 x 92 x 38 | 140 x 92 x 38 | 140 x 92 x 38 | 140 x 92 x 38 | 140 x 92 x 38 |
