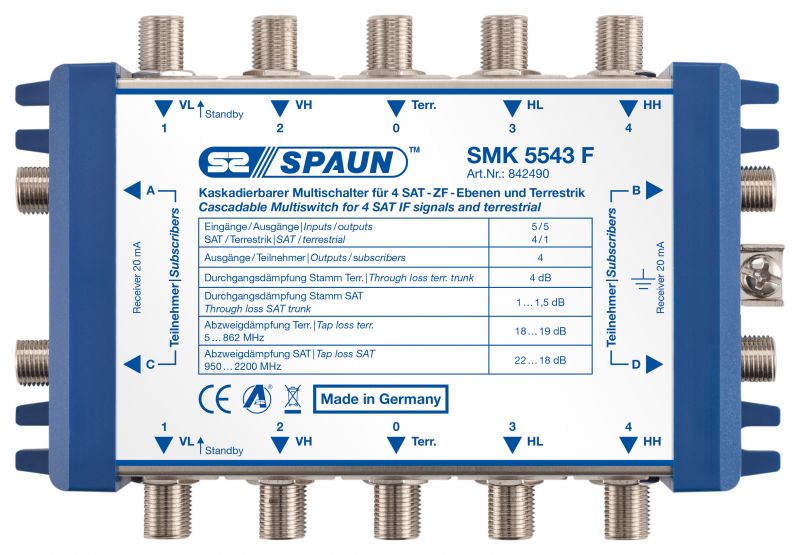

SMK 5543 F
Cascadable multiswitch for 4 SAT IF signals and terrestrial 4 subscribers
- Brand:
SPAUN
-
Code: SMK 5543 F
Available
| Model Art. No. | SMK 5543 F 842490 | SMK 5583 F 842491 | SMK 55123 F 842492 | SMK 55163 F 842493 | SMK 55243 F 842494 |
| EAN | 4040326424902 | 4040326424919 | 4040326424926 | 4040326424933 | 4040326424940 |
| Inputs / outputs SAT / Terrestrial | 5 / 5 4 / 1 | ||||
| Outputs / subscribers | 4 | 8 | 12 | 16 | 24 |
| Through loss terrestrial | 4 dB | 5 dB | 6 ...5 dB | 6 ...5 dB | 6 ...5 dB |
| Through loss SAT | 1 ... 1,5 dB | 1,5 ... 3 dB | 2 ... 4 dB | 2 ... 6 dB | 3 ... 7 dB |
| Tap loss terrestrial | 18 ... 19 dB | 20 ... 21 dB | 25 ... 23 dB | 25 ... 24 dB | 28 dB |
| Tap loss SAT | 22 ... 18 dB | 22 ... 18 dB | 22 ... 18 dB | 21 ... 17 dB | 23 ... 20 dB |
| Switching isolation | > 30 dB | ||||
| Isolation trunkline / trunkline | > 30 dB | ||||
| Isolation receiver / receiver | > 30 dB | ||||
| DC-pass max. Trunkline 0; 2; 3 and 4 | 1 A | ||||
| Current consumption for each receiver max. | 20 mA | ||||
| Ambient temperature | -20 ... +50 В°C | ||||
| Dimensions (mm) | 90 x 140 x 40 | 145 x 130 x 40 | 185 x 130 x 40 | 225 x 130 x 40 | 305 x 130 x 40 |
