HC 30115

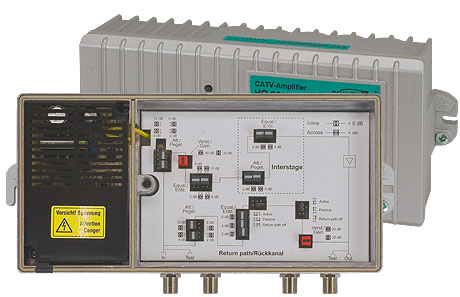

Flexible home distribution amplifier with built-in return path, jumper adjustment- jumper configuration- return path included- amplification forward range and return path pluggable, low noise by bypassing a single stage- excellent amplitude frequency response- test point on input and output
- Brand:
Polytron
-
Code: HC 30115
Available
| Technical data | |
| Type | HC 30115 |
| Article no. | 1452440 |
| Frequency range | 5-65 / 85-862 MHz |
| Return path integratedВ | 21 dB / 27 dB |
| 65 MHz | |
| Attenuator | 0-16 dB / 0-6 dB interstage |
| Equalizer | 0-16 dB |
| Amplification | 30 dB |
| Output level | |
| IMA3 (60 dB) | 115 dBВµV |
| CTB (Cenelec 42) flach / flat | 98 |
| CSO (Cenelec 42) flat | 97 |
| Noise figure | 6 dB |
| Outputs | F |
| Power supply | 180-265 V |
| Dimensions (W x H x D) | 196 x 96 x 55 mm |
| Weight | 1,1 kg |
