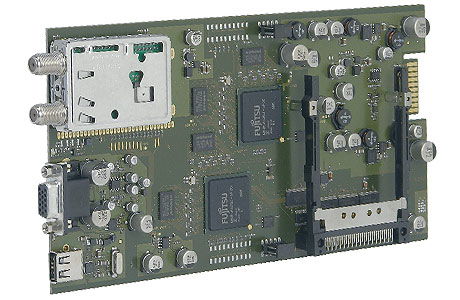

DVB-S2 into AV with CI, twin module
Receiving module for conversion of two DVB-S/S2 programmes of a single transponder into AV signals.
- Brand:
Polytron
-
Code: SPM-S2AVT
Available
| Technical data | |
| Type | SPM-S2AVT |
| Article no. | 5529760 |
| Frequency range | 950–2150 MHz |
| Input level | 50–70 dBµV |
| Modulation | DVB-S / DVB-S2 (QPSK / 8 PSK) |
| Type of interface | CI |
| Symbol rate | 2–45 MS/s |
| FEC | gemäß DVB / according to DVB |
| CR DVB-S2 / QPSK | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
| CR DVB-S2 / 8PSK | 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 |
| ER DWB - 5 / GPSK | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Video level | 1 Vpp / 75 Ohm |
| Audio level | -6 / -3 / 0 / 3 / 6 dB (einstellbar / adjustable) |
| LNB supply | 12 V / 250 mA |
| Connection | 15-polig SUB-D-Buchse / 15-pin female SUB-D |
| Power consumption | max. 11 W |
| Weight | 0,47 kg |
