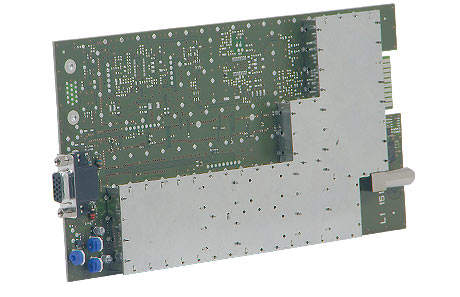

A/V into PAL modulator
High quality single modulator for conversion of up to 20 channels in a single SPM 2.000.
- Brand:
Polytron
-
Code: SPM-MM
Available
| Technical data | |
| Type | SPM-MM |
| Article no. | 5527940 |
| Version | Single |
| Operating mode | AV/TV mono |
| Modulation | Restseitenband / VSB |
| Video input level | 1 Vpp (В± 1 dB) / 75 Ohm |
| Audio input level | 1 Vpp / 10 kOhm einstellbar |
| Video bandwidth | 20 Hz - 5 MHz |
| Audio bandwidth | 40 Hz - 15 kHz |
| Output frequency | 45 - 862 MHz |
| TV-standard | B/G, B/B, D/K, I, M, N |
| Output level | 95 dBВµV |
| Variable attenuator | 0-20 dB |
| Signal to noise | > 57 dB |
| AV-input | SUB-D |
| Power consumption | 3,5 W |
| Weight | 0,4 kg |
