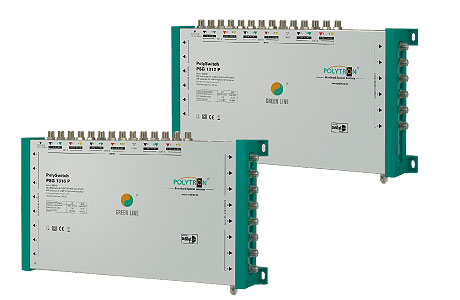

PSG 1316 P
Standalone multiswitch for distribution of 12 SAT IF polarisations and terrestrial signals.
- Brand:
Polytron
-
Code: PSG 1316 P
Available
| Technical data | |||
| Type | PSG 1308 P | PSG 1312 P | PSG 1316 P |
| Article no. | 9268120 | 9268130 | 9268140 |
| Inputs | 12 SAT, 1 TERR | ||
| Outputs | 8 | 12 | 16 |
| Insertion lossВ SAT 950-2150 MHz | 2 dB | 2 dB | 2 dB |
| Insertion lossВ Terr. 40-862 MHz | 21 dB | 24 dB | 24 dB |
| Switching commands | 14 V / 18 V / 0/22 kHz / DiSEqC 2.0 | ||
| Isolation Horz. / Vert. | > 28 dB | ||
| Isolation SAT / Ter. | > 30 dB | ||
| Input level max | SAT: 95 dBВµV ; TERR: 95 dBВµV | ||
| Power consumption per receiver | 50 mA | ||
| LNB supply | 2400 mA | ||
| Operation temperature | -20...+50 В°C | ||
| Operating voltage | 180-264 VAC, 47-63 Hz | ||
| Dimensions (W x H x D) [mm] | 370 x 128 x 54 | 370 x 209 x 54 | 370 x 209 x 54 |
