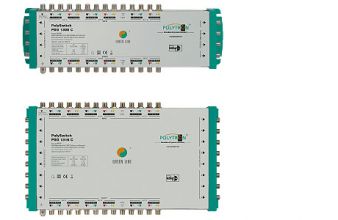

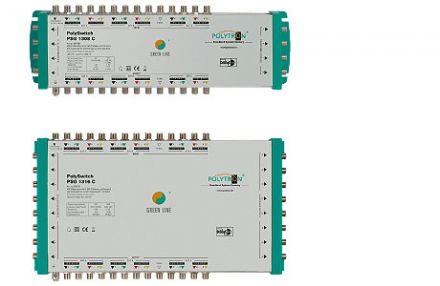

PSG 1316 C

Cascadable multiswitch for distribution of 12 SAT IF polarisations and terrestrial signals.

Price
Price: €0.00
Quantity:

Available

Send to friend Rate this product Add to wishlist Compare
Technical data
TypePSG 1308 CPSG 1312 CPSG 1316 C
Article no.926815092681609268170
Inputs12 SAT, 1 TERR
Outputs81216
Through loss TERR 40-862 MHz4 dB4 dB4 dB
Through loss SAT 950-2150 MHz3 dB4 dB4 dB
Tap lossВ Terr. 40-862 MHz24 dB27 dB27 dB
Tap lossВ SAT 950-2150 MHz0 dB2 dB2 dB
Switching commands14 V / 18 V / 0/22 kHz / DiSEqC 2.0
Isolation Horz. / Vert.> 28 dB> 28 dB> 28 dB
Isolation SAT / Ter.> 30 dB> 30 dB> 30 dB
Input level max.SAT: 95 dBВµV ; TERR: 95 dBВµV
LNB supplymax. 2400 mA
Power consumption per receiver50 mA
Operation temperature-20...+50 В°C
Dimensions (W x H x D) [mm]370 x 128 x 54370 x 209 x 54370 x 209 x 54
