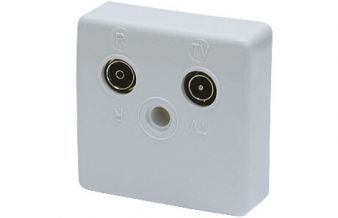

BSK K2-S38
Rejection filter adaptor for 2 hole and 3 hole antenna outlets. BSK 0 and BSK 10 for blocking of CATV supply, BSK K... for providing selected programs.
- Brand:
Polytron
-
Code: BSK K2-S38
Available
| Technical data | |||
| Type | BSK K2-S38 | BSK K2-4 / 5-8 | BSK K2-4 / 5-12 |
| Article no. | 2576100 | 2571000 | 2571100 |
| Pass range | K2-S38 | K2-K4/K5-K8 | K2-K4/K5-K12 |
| Rejection range | K21-K69 | S2-S9/K10-K69 | S2-S9/S12-K69 |
| Rejection loss | ≥ 40 dB | ≥ 40 dB | ≥ 40 dB |
| Separation channels | S 39 | S10/K9 | S2/S10/S11 |
| Through loss | ≤ 3 dB | ||
| FM pass range | 0,1-108 MHz | ||
| FM through loss | ≤ 1 dB | ||
| Isolation RF/TV | ≥ 40 dB | ||
| Screening factor | 0-450 MHz: ≥ 75 dB ; 470-862 MHz: ≥ 65 dB | ||
| Dimensions (WxHxD) | 65 x 65 x 22 mm | ||
| Weight | 0,14 kg | ||
